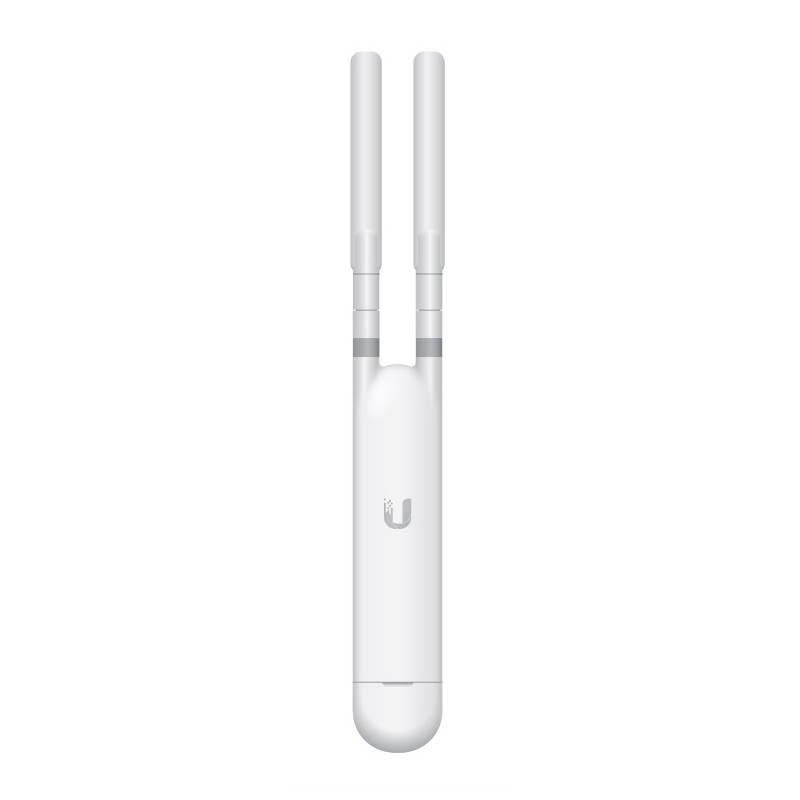

Ubiquiti UniFi UAP-AC Mesh

Reference: 90-170

High-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point.

External warehouse

+10 in stock

More info

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.

Data sheet

Model	UAP-AC-M
Power consumption	8,5W (Max)
PoE	24V Passive PoE 802.3af PoE
WLAN	802.11 a/b/g/n/ac
RJ-45 port	1 x 10/100/1000 Mbps
Certification	CE, FCC, IC
Weight	152 g
Operating temperature	-30 to 70 ° C
Scope	Up to 183 m (600 ft)
Dual-Band	Yes, Simultaneous
VLAN support	Yes, 802.1Q
Number of users	250+
Signal Strength	20 dBm (2.4GHz / 5GHz)
MIMO	2.4 GHz (2x2), 5 GHz (2x2)
