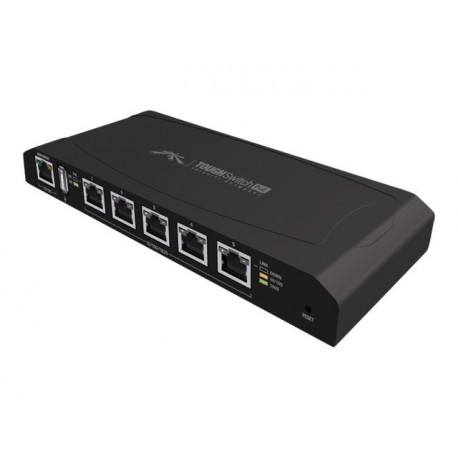

Ubiquiti TOUGHSwitch TS-5-POE

Reference: 50-220

Toughswitch from Ubiquiti with passive PoE support and Gigabit. Configurable and robust makes it suitable for in

dustrial use.

Order item

More info

Ubiquiti Toughswitch provides reliable Passive PoE and connectivity to devices that support Passive PoE, specially adapted for Ubiquity products. The Ubiquiti TOUGHSwitch TS-5 supports 24V Passive PoE, is Manageable Switch (Managed Switch) and is made of sturdy material making it suitable for industrial use.

Data sheet

Model	TS-5-POE
Ports	5 x 10/100/1000 Mbps
PoE	Yes, 24V / 48V Passive PoE
Certification	CE, FCC, IC
USB port	1 x USB 2.0 Type A (Reserved for future functions)
RAM	64MB
Processor	X MIPS MIPS 24K (400 MHz)
Product	Network switch (Managed)
Features	Port Monitoring System Connection and management services, virtual local area network (VLAN) configuration, Spanning Tree Protocol (STP) / Rapid Spanning Tree Protocol (RSTP), jumbo frame support, the Ping Watchdog, configurable alerts
Weight	1.24 kg
Package containing	Adapter (24V / 2.5A), manual, Wall mounting screws
Max power (PoE per data port)	11.5 W
Management Port	1 x 10/100 Ethernet port
