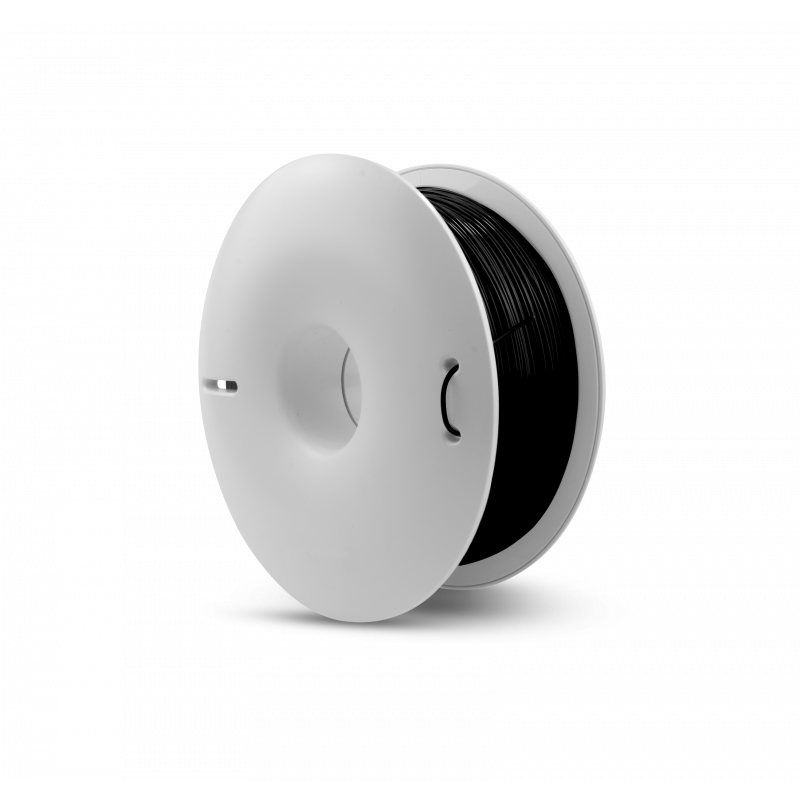

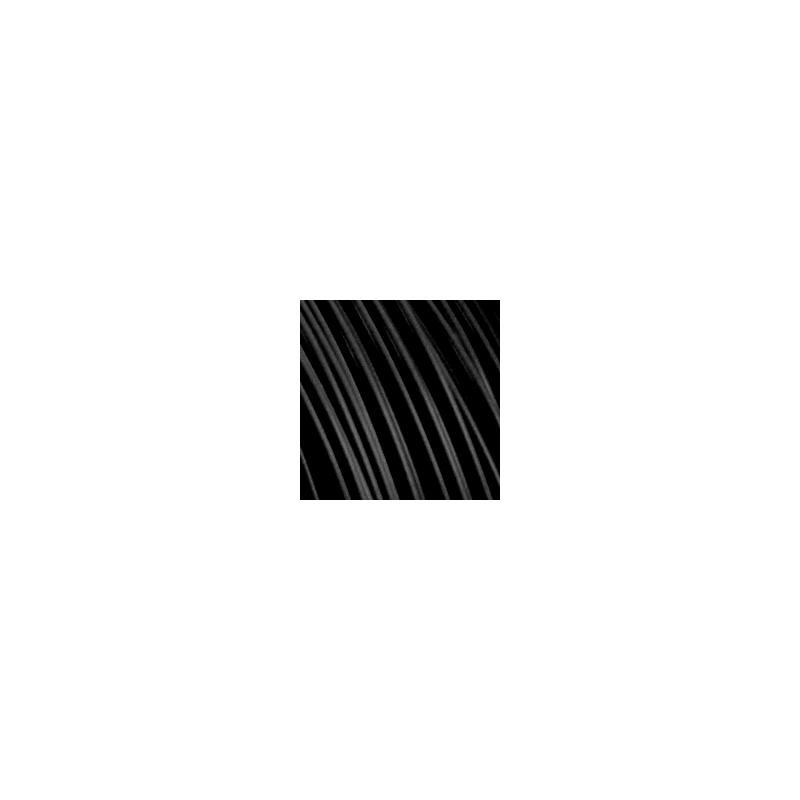

Fiberlogy PET-G ESD Black 1.75mm 0.5kg

59-700

The ESD PET-G filament is designed for printing components of electronic devices exposed to damage as a result of electrostatic discharge.

More details

Local warehouse


2 in stock


519 kr tax excl.

649 kr tax incl.



More info

Its high electrical charge dissipative properties ensure the safety of integrated circuits and other electronic components, minimizing the risk of partial or permanent damage.

ESD PET-G is characterized by high strength and resistance to weak acids, alcohols, oils and gasoline. This material does not require a heated chamber or a hardened nozzle.

Application

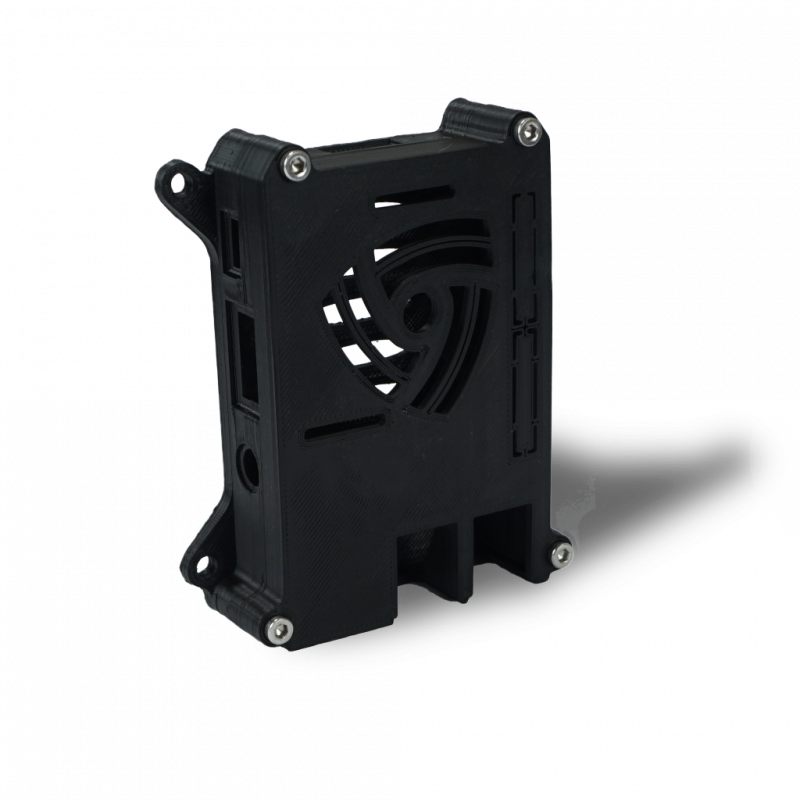

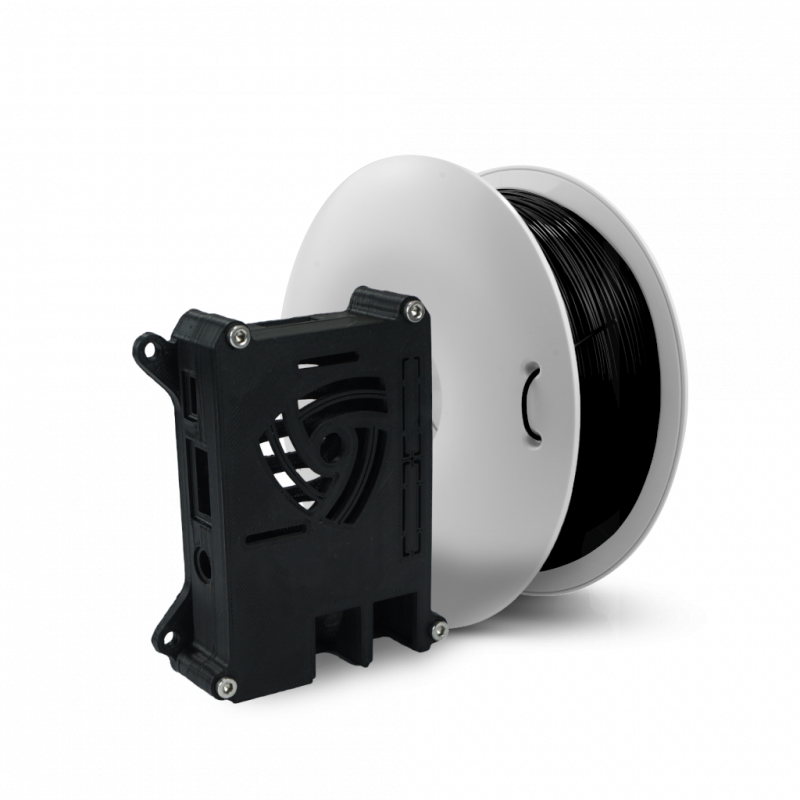

  • ELECTRONICS: housings, covers, cases, screens products equipped with diodes, connectors

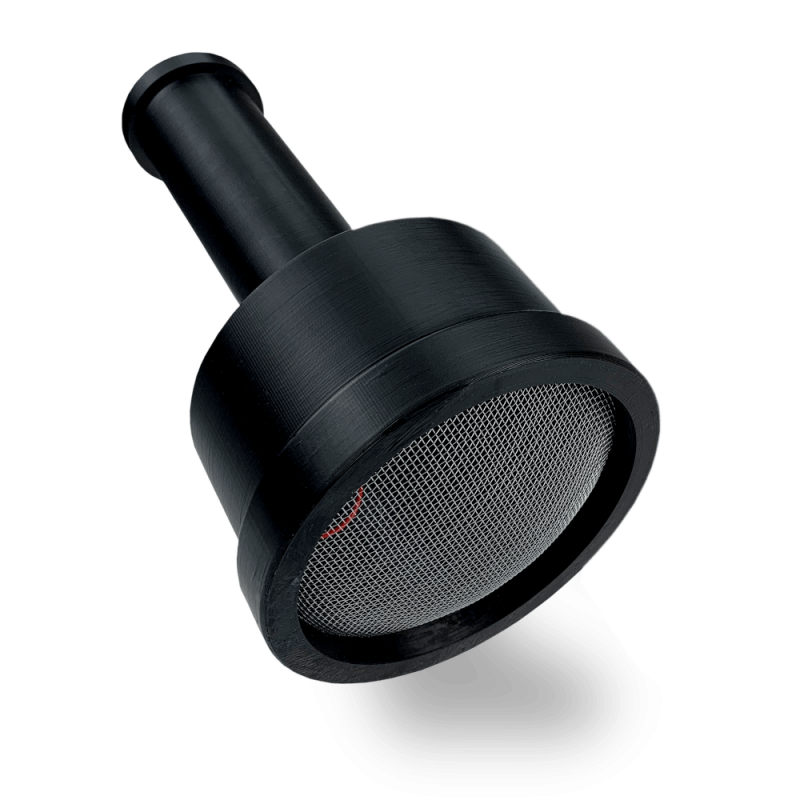

  • TOOLS OR THEIR PARTS: tools for working with electronics, tools for making electronic components
  • PARTS AND TRANSMISSION TOOLS: machine components, elements of equipment for employees and manufacturing plants

Properties

  • high resistance to electrostatic discharge and chemicals
  • high impact strength
  • resistance to high temperatures and scratching
  • possibility of mechanical and chemical processing

Note: Due to the content of carbon nanoparticles, the minimum recommended nozzle diameter is 0.5 mm.

Data sheet

Model PET-ESD-175-050
Weight 0,50 kg
Diameter tolerance +/- 0.02 mm
Oval tolerance + 0.01 mm
Diameter 1.75 mm
Nozzle Temperature 230-250°C
Bed Temperature 85°C
Closed Chamber Not required
