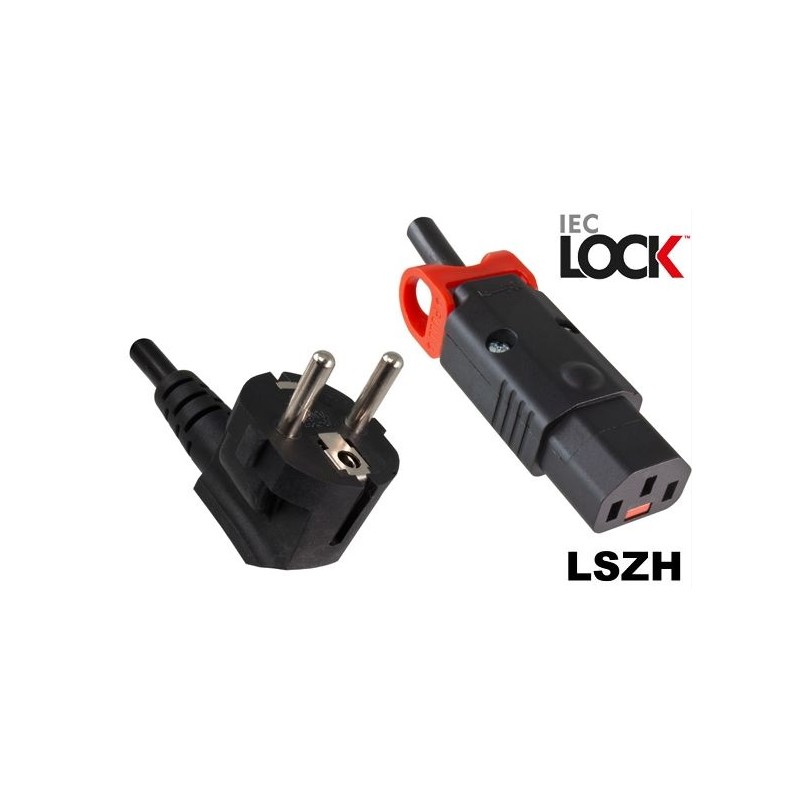

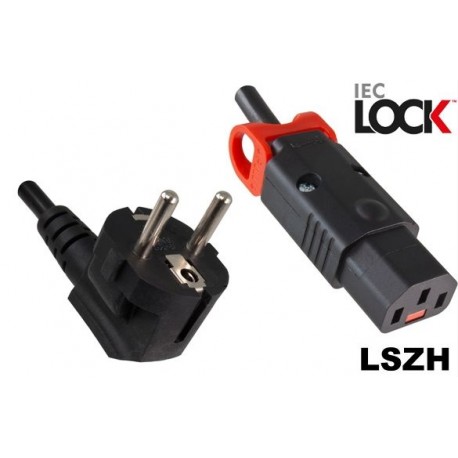

IEC Lock Låsbar apparatkabel C13 1.5m

• Connectors: CEE 7/7 E+F 90° angled to IEC-Lock C13
• Colour: black
• Length: 1.5m
• X section: 3 x 1mm²
• Material: H05Z1Z1-F
• Approval: VDE, ENEC
• RoHS compliant
• Packaging: bulk
• IP 20
• This cable is certified completely LSZH including the connectors.

Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldavia, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain, South Korea, Sweden, Tunisia, Ukraine

There is no official standard in Syria and Turkey, the CEE 7/7 connector is in general use.

Plug type E+F CEE-7/7-System - Yung-Li Part No YP-22
Two safety feature systems are incorporated in the CEE 7/7 plug so that grounding (earthing) functions through the flanges on the circumference of the plug or through an earth pin (french system).

Connector type C13 - locking version
The appliance coupler IEC 60320-C13 is used to connect equipment that doesn't produce excessive heat when in use. The maximum pin temperature should not exceed 70°C and the maximum current is 10A.

This C13 version has built in patented lock mechanism to prevent accidental disconnection from the connected equipment.

Low Smoke Zero Halogen LSZH

Low smoke zero halogen is a material classification typically used for cable jacketing in the wire and cable industry. LSZH cable jacketing is composed of thermoplastic or thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat.

Most cables are insulated with polyethylene, PVC or thermoplastic polyurethane. In a fire, a chlorine-containing plastic material releases hydrogen chloride, a poisonous gas that forms hydrochloric acid when it comes in contact with water. Designated halogen-free cables, on the other hand, do not produce a dangerous gas/acid combination when exposed to flame.

Low smoke zero halogen cable reduces the amount of toxic and corrosive gas emitted during combustion. This type of material is typically used in poorly ventilated areas such as aircraft, rail cars or ships. It is also used extensively in the railway industry, wherever high voltage or track signal wires must be run into and through underground tunnel systems. This reduces the chance of toxic gasses accumulating in these areas should the wires be damaged by fire or a short circuit fault.
