Displayport to HDMI-adapter (DP 1.4)

Generally, all passive DisplayPort (DP) to HDMI cables and/or passive adapters only work in the DP to HDMI (monitor) direction. This is due to the fact that the DisplayPort interface can output an HDMI signal, but there is no DisplayPort signal on an HDMI port. The latter type of signal conversion is only possible with an active converter (signal converter).

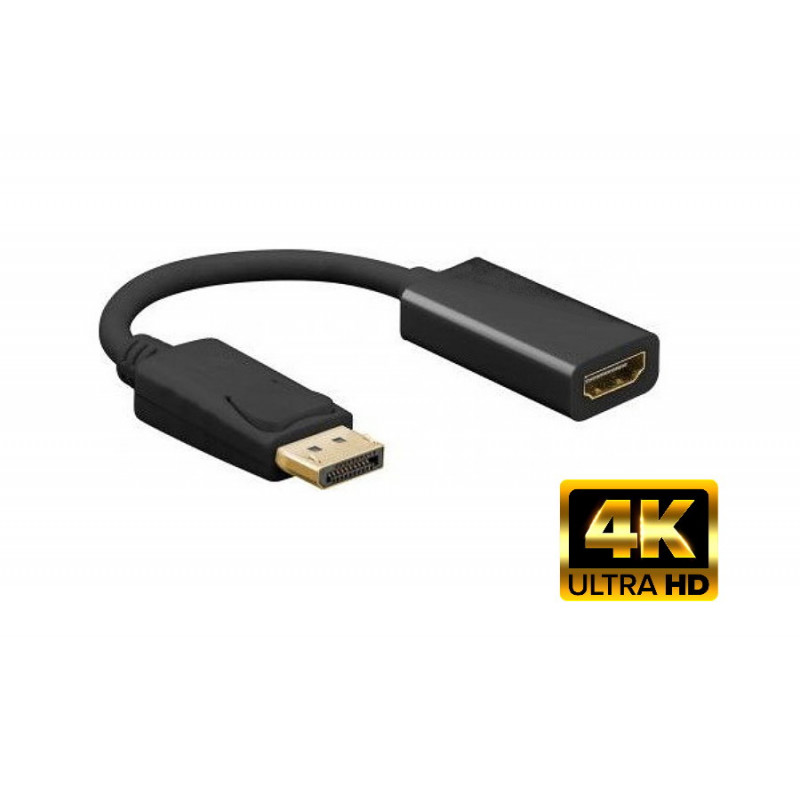

DisplayPort male to HDMI female

• For transmitting HD video signals from a computer to a monitor, including audio signal transmission.
• A simple solution for adding an external monitor; plug and play
• Supports 4K*2K@60Hz and 3D video
• DisplayPort 1.4 backward compatible to 1.2 and 1.1
• Connector with latch for secure mounting
• Gold-plated contacts for improved signal transmission

Technical specifications

• Connector: DisplayPort 1.4, gold-plated contact material
• Socket: HDMI type A
• Cable length 0.1 m

Packaging dimensions (BOX2-20)

• width: 116mm
• Height: 220mm
• Depth: 20mm
