> >>>Raspberry Pi Active Cooler Cooler for Pi 5
New Raspberry Pi Active Cooler Cooler for Pi 5 View larger

Raspberry Pi Active Cooler Cooler for Pi 5

68-043

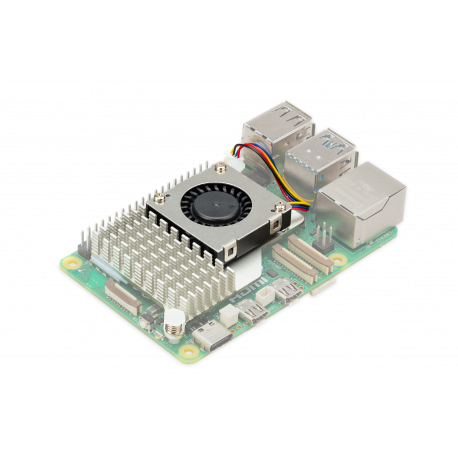

Raspberry Pi Active Cooler combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

More details

Local warehouse


1 in stock


95 kr tax excl.

119 kr tax incl.



More info

Features

  • Single-piece anodised aluminium heatsink
  • Heatsink-mounted, temperature-controlled blower fan attached by three screws
  • Automatic detection by the latest Raspberry Pi software and firmware.
  • Pre-applied thermal pads for heat transfer

Note

Raspberry Pi recommends that the Active Cooler is not removed once it is fitted to Raspberry Pi 5. Removal of the Active Cooler will cause the push pins and thermal pads to degrade and is likely to lead to product damage. Discontinue use of the Active Cooler if the push pins are damaged or deformed, or if they do not clip securely.

Specifications

  • Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
  • Fan speed control: Pulse width modulation control with tachometer
  • Maximum airflow: 1.09 CFM
  • Maximum fan speed: 8000 RPM +/- 15%
  • Product material: Anodised aluminium

Data sheet

Model RP9-111480
