Shelly Uni

Universally small

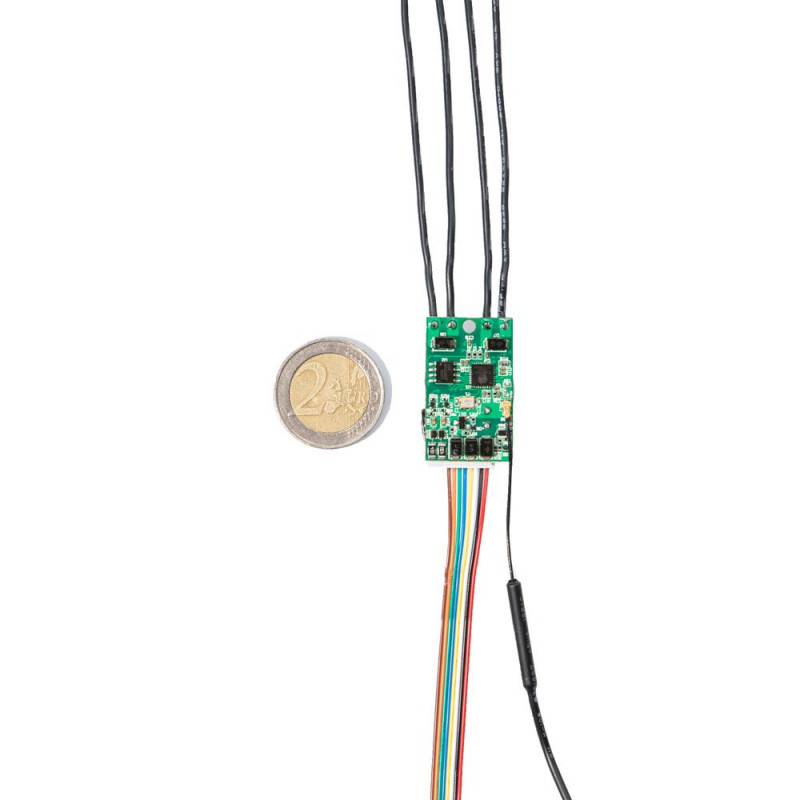

With the ideal size of 20 x 33 x 13mm (0.78 x 1.29 x 0.5 in), Shelly UNI is the smallest universal module that can make any old appliance smart.

Universally flexible power supply

Shelly UNI can be powered with the wide range of 12V-36V DC and 12V-24V AC.

Universally digital inputs

Includes 2 digital inputs, which can be support differing voltages and work separately from 2.2-36V DC and 12-24V AC.

Universal outputs

The two potential-free outputs allow control from inputs or separately, and can switch up to 36VAC and 24VDC, with a maximum current of 100 mA each.

Universal ADC

The ADC range can measure any voltage from 0 to 30 VDC. Dual ranges from 0-12V and 12-30V give exceptionally high accuracy.

Universal Temperature & Humidity sensors

Shelly UNI supports up to 3xDS18B20 temperature sensors or 1Х humidity sensors, making it possible to trigger outputs, local and cloud scenes.

Universal protocols

Out of the box, Shelly UNI supports REST, MQTT, CoAP, Alexa, Google Home, and Samsung Smart Things, making it highly compatible with all major home automation platforms.

Universal resistance

Even though there is no plastic cube, the transparent insulation cover over the chip protects it from high humidity, dust, and the threat of short circuits during its long working hours.

• Flexible voltage supply: Can be operated on 12V-36V DC or 12V-24V AC
• Universal ADC: Can measure any voltage between 0V-30V DC
• Temperature and humidity sensors: Can connect up to 3 DS18B20 + or 1 DHT11 for temperature and humidity measurement
• Digital inputs: Two digital inputs that can take a voltage of between 2.2V-36V DC
• Protocols: REST, MQTT, CoAP, Alexa, Google Home, and Samsung Smart Things
